Structure of Floater Ring:
Main features of Floater Ring:
1. Good flexibility, excellent impact resistance, particularly suitable for constructions in open sea.
2. Light weight, easy to install and handle, lower costs for moving.
3. Higher corrosive resistance, longer working life, 3 times longer than steel floaters.
4. Lower costs, the cost performance is better than steel floaters.
Remarks of Floater Ring:
1. 2 pieces of floaters form 1 set, 2 sets of floaters form 1 pair. 1 pair of floaters could float 6 meter long steel dredging pipe and 1.5m long rubber hose.
2. The floaters under the size of O.D4m*L4m are all available.
Customersized Floater Ring are all available
No. | Structure Name | Material |
1 | Polyethylene Hull | Polyethylene |
2 | Hard Polyurethane foam core | Closed-cell Polyurethane |
3 | Steel Bolts | Metal |

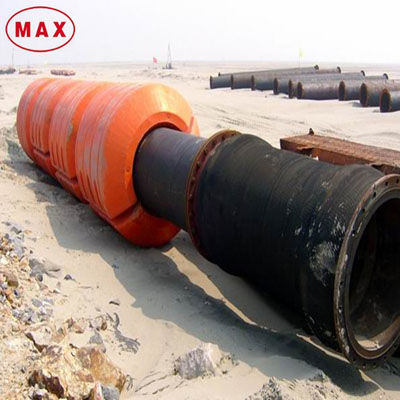

The hull of Floater Ringis made from medium density polyethylene material with excellent flexibility, filled with high strength polyurethane foam inside. With reasonable structure and good performance, the MDPE floater becomes the ideal substitution of the traditional steel floater for the floating dredging pipes.
Main features of Floater Ring:
1. Good flexibility, excellent impact resistance, particularly suitable for constructions in open sea.
2. Light weight, easy to install and handle, lower costs for moving.
3. Higher corrosive resistance, longer working life, 3 times longer than steel floaters.
4. Lower costs, the cost performance is better than steel floaters.
Remarks of Floater Ring:
1. 2 pieces of floaters form 1 set, 2 sets of floaters form 1 pair. 1 pair of floaters could float 6 meter long steel dredging pipe and 1.5m long rubber hose.
2. The floaters under the size of O.D4m*L4m are all available.
Floater Ring Specification (unit: mm)
Ship Type | Steel Dredging Pipe I.D | Floater OD | Floater I.D | Floater Length |
Self-priming Vessel | Φ355 | Φ1100 | Φ355 | Φ1100 |
Self-priming Vessel | Φ400 | Φ1100 | Φ400 | Φ1200 |
200 m3/H | Φ400-420 | Φ1310 | Φ430 | Φ1335 |
350 m3/H | Φ550-560 | Φ1300 | Φ576 | Φ1400 |
Beaver 1600 | Φ500 | Φ1370 | Φ522 | Φ1400 |
Beaver 3800 | Φ650 | Φ1500 | Φ680 | Φ1800 |
8000 wring | Φ800 | Φ1780 | Φ840 | Φ2000 |
8000 wring | Φ850 | Φ2200 | Φ910 | Φ2500 |
With CE, ISO9001, ISO14001certificates, high quality and competitive price.
Customersized Floater Ring are all available
Item | Technical Index of Hull | Item | Inside Technical Index |
Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
Bteak Elingation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
Impact Strength | ≥32.4KJ/m2 | Breaking Elingation | 4-6% |
Bending Strength | ≥15.7 MPa | Compressive Strength | 0.1-0.24MPa |
Weather Resistance ≥ 3.5GJ/m2 After tital aging energy≥3.5GJ/m2 |
Break Elingation %≥ | 10 | |
200°Cmm≥ Oxidative Induction Time 200°Cmm≥ |
10 |
Maine Floater Size:
Floater I.D. (mm) |
Floater O.D.(mm) |
Floater Length(mm) |
Thickness of Plastic(mm) |
Floater Buoyancy force(kg) |
220 | 500 | 800 | 7 | 200 |
300 | 700 | 1200 | 7 | 420 |
375 | 1100 | 1100 | 7 | 920 |
414 | 1100 | 1200 | 8 | 1020 |
430 | 1200 | 1200 | 8 | 1200 |
480 | 1300 | 1300 | 8 | 1500 |
580 | 1400 | 1550 | 9 | 2219 |
630 | 1400 | 1700 | 11 | 2400 |
680 | 1480 | 1800 | 11.5 | 2930 |
730 | 1600 | 1900 | 12 | 3593 |
780 | 1600 | 2000 | 13 | 3800 |
830 | 1800 | 2000 | 14 | 4800 |
880 | 1800 | 2200 | 15 | 5140 |
940 | 2200 | 2500 | 16 |
8180 |
